TIME-SERT 5700 Triple Oversize Spark Plug Thread Repair Kit w/Washer Seat

(No reviews yet) Write a Review
SKU:
5700
MPN:
5600
Condition:
New
Availability:
In Stock
Weight:
5.81 LBS
Shipping:
Calculated at Checkout
$557.80

Description

Very Rare: Only use for 3/4 or 19mm reach WASHER SEAT spark plugs. Washer seat plugs are used mostly on foreign vehicles, if you have a Domestic vehicle like a Ford with taper seat plugs in need of a triple oversize repair see our 5600 kit. Be aware the external diameter of the large insert is 20mm check to see if you have clearance around your valves. This kit will repair holes as large as .730 inches by installing two inserts one insert inside the other.

Qty      Kit includes
1        M18 Wrench Triple oversized
1        Optional Counterbore for RF-1L2E - 55518 Setting tool with ring
1        M18 Reamer Triple oversized
1        M18 Tap Triple oversized *Note this is NOT a standard M18x1.5 it's oversized.
1        M18 Driver Triple oversized
5        M18 Inserts Triple oversized PN 55522 (measures approximately 3/4" OD)
5        M14x1.25 insert fully threaded washer seat PN 51407
1        M14x1.25 driver tool
1        Oil (J-42385-110)
1        Loctite Sealer
1        1/8 hex key small
1        3/16 x 6” hex key long
1        Case

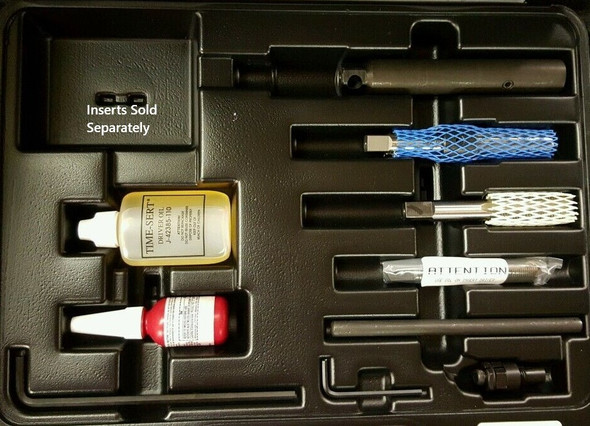

Mouse over the images above for a more detailed view of the kit components. Need more information on TIME-SERT thread repair kits? Visit our auto repair blog section on thread repair kits for tips, advice and all your thread repair questions answered. Just comment and we will be quick to respond.

See the pdficon-small.png TIME-SERT products pdf for more information on thread repair kits and inserts. Some are listed for certain applications on cars, trucks and motorcycles. The pdf is a partial application list so feel free to email or call if we can assist with your particular need. We also accept inquiries regarding our daily TIME-SERT specials. Remember TIME-SERT is recommended by leading car manufacturers like the General Motors Corporation. In fact TIME-SERT is GM's only authorized repair for head bolt threads.

*Please note that the progress of the depth that the reamer has reached should be closely monitored. In the video at around 7:08, we mention that the tool will not go but so far because of the collar; While this is true in most cases, we advise to be careful and stop once the counter-bore (the widest portion) of the reamer has been reached. Forcing tool to continue cutting may possibly cause irreversible damage to head. Questions please call us at 800-734-8665 x251.
