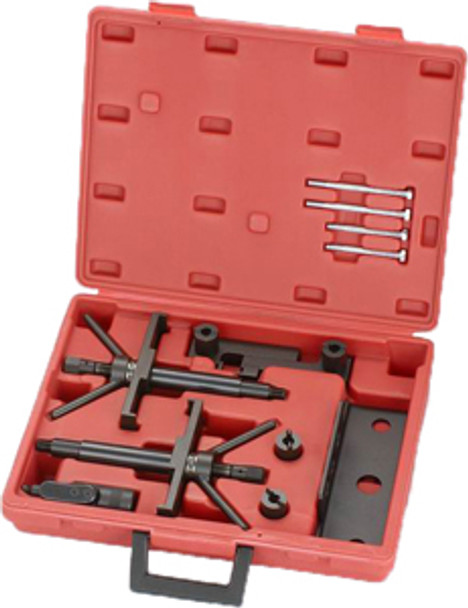

CM2863 Volvo Cam/Crank Alignment Kit

CTA Tools Volvo Cam/Crank Alignment Kit. Commonly used on Volvo 850, 960, S40, S70 & S90. Used for Alignment of Camshafts and Crankshafts. See the instructions linked pdf below for a comparable tool set more information on how to use this alignment kit. Also see our comparable tool kit at a much lower cost by Win Tools 5452-V500.

• For alignment of the cam and crankshafts. Also enables correct installation of the Camshafts with the cam cover.
• This set is designed to properly Secure and Align the cylinder head, cam and crankshaft during Removal and Installation of cylinder head assemblies on (4), (5) and (6) cyl engines - also for the proper installation of camshaft cover to the engine head and useful when replacing camshaft seal.
• Master Set for Volvo tools designed to properly secure and align the cam and crankshaft during R & R of cylinder head assemblies on (5) and (6) cyl engines -also for the proper installation of camshaft cover to the engine head and useful when replacing camshaft seal.
• Volvo factory tool numbers from repair manual: 999-5454, 999-5453, 999-5452, 999-5451.
• Kit Contains: 2- 9995454 , 1- 9995452, 1- 9995453, 9995254, 1- 9995451

Applicable to Engines:
B6254GS, B6294T, B5234T4, B6294S2, B5244S6, B5204T2, B5234FS, B4184S2, B5254FS M 4.4, B4204T2, B5244S4, B5254T, B5234T9, B4204T3(US)(CDN), B6304S3, B5204T4, B5244S5, B5204T3, B5204FS, B5252FS, B5254FS M 4.3, B4194T, B6294S, B5244T4, B6254FS, B4184S, B5234T6, B5234T2, B6304FS2,GB5252S, B4204S2, B4204T, B5244S2, B5204T5, B5244T7, B4184S9, B4204T4, B6284T, B5234T5, B6304FS, B4204T3, B5244SG2, B6244FS, B4184SJ, B4204T2 CVVT, B6304GS, B5254T4, B4184S3, B5234T3, B5244T2, B5244T3, B5244T5, B5254T2, B4204S, B5244S7, B5204FT, B5234FT, B5234T8, B5234T7, B5244S, B4184S10, B4194T2, B5254T3, B5254S DENSO, B4164S, B5254FS LH 3.2, B5244SG, B5244T, B4204T5, B5202FS, B4164S2, and D4192T2

 Comparable Volvo Cam Kit Instructions by Assenmacher AHV500
